The Timeline displays a horizontal ruler above the tracks measuring time from zero (the start of the track). Depending on zooming the ruler may span minutes of audio or give a "close up" view of a few seconds or fractions of a second.

The Timeline is not merely an indicator of audio position but can also be used to effect Quick-Play. This functionality can be toggled on/off by right clicking in the Timeline and enabling/disabling Quick-Play (default setting is "on").

Bulb icon A particularly powerful use of the Timeline is in the creation of seamless loops.

Contents

  1. The Timeline ruler
  2. Symbols displayed on the Timeline ruler
  3. The Timeline in use
  4. Pinned Play/Record Head
  5. Using Timeline Quick-Play
  6. Timeline right-click menu

The Timeline ruler

By default the basic Timeline ruler is displayed, like so:

Timeline default scale.png

Optionally the Scrub Ruler, the gray strip below the Timeline, can be shown too:

Timeline default scale with Scrub Ruler.png

The Scrub Ruler is used solely for Scrubbing and Seeking and can be turned on in Interface Preferences and selecting unchecked checkbox Show Scrub Ruler in the Timeline section.


Symbols displayed on the Timeline ruler

  • Unpinned playhead button.png The Play/Record Head button at the far left of the Timeline (shown in its default unpinned state) controls the record and play heads enabling you to toggle between unpinnned and pinned.
    • Clicking on this button will pop up a context menu enabling you to change to Pinned playhead button.png pinned (fixed and centered) Play/Record heads.
  • SelectionRangeCursor.png The selected region: (when present) is shown as a shaded region on the ruler. By default, pressing Play or Record on Transport Toolbar plays or records from the left edge of this region.
    • In the shaded region, the playback region is shown by thin left-pointing and right-pointing arrowheads connected by a line. This region will be played whenever the Play button Play button is clicked (see also: Play Region Lock).
  • image of the playback start position cursor The playback start position cursor. Pressing the Play button Play button plays from this cursor position.
  • EditCursor.png The editing cursor: (always present when there is no selected region) is shown as a black vertical line.

    When "Quick-Play" is not active, the playback start position cursor image of the playback start position cursor is attached to it image of the editing cursor with attached playback start cursor.

  • PlaybackCursor.png The unpinned-head playback cursor: (when playing or paused during play) is shown as a large green triangle.
  • Pinned playhead icon.png The pinned-head playback cursor: (when playing or paused during play) is shown as a large green drawing-pin in the center of the Timeline.
  • RecordingCursor.png The unpinned-head record cursor: (when recording or paused during record) is shown as a large red triangle.
  • Pinned record-head icon.png The pinned-head record cursor: (when recording or paused during record) is shown as a large red drawing-pin in the center of the Timeline.
  • QuickPlayRegionCursor.png Quick-Play region: A region in the Timeline that plays immediately when dragged with the mouse, even if audio is already playing elsewhere. It is shown by thick left-pointing and right-pointing arrowheads connected by a line. By default, Quick-Play does not modify the position of the editing cursor or region in the waveform (this behavior may be changed in the Timeline context menu). To start "Quick-Play" of a region (even if the track is already playing or paused from playing), hover over the Timeline until the mouse pointer changes to a hand, then drag in either direction and release. Playback will continue to the end of the Quick-Play region.
    • If you just want to play from a particular point to the end of the project, click in the Timeline at the point from which you want playback to start or restart. The Quick-Play cursor is then shown only by a left-pointing arrowhead. Playback will continue to the end of the project.
    • To make the dragged Quick-Play region loop (play repeatedly until stopped), press and hold Shift, drag in the Timeline then release the drag. Loop play will be indicated by the Play button in Transport Toolbar changing to Loop Play Loop Play.png.
    • You can also play two seconds before the Quick-Play region and one second after it (as if that region had been deleted) just like Play Cut Preview of a region in the waveform. To preview cutting the Quick-Play region, press and hold Ctrl then drag and release in the Timeline. The duration that is played before and after the region can be changed in the Cut Preview section of Playback Preferences.
    • As with standard playback, you can press Space or click the Stop button Stop button to stop Quick-Play before the end of the region or project is reached.
  • PlayRegionCursor.png Play Region Lock: The position of the playback region (or the current position of the Quick-Play region) can be locked in the Timeline for use in all further standard playback. To do this, choose Transport > Play Region > Lock or right-click in the Timeline and choose Lock Play Region from the context menu.
    • When "Locked", the region displays in red in the Timeline. A locked region is always used for standard playback (including Play-at-Speed) even if the editing cursor or region in the waveform is at a different position.
    • The position of the locked region cannot be expanded or contracted by dragging either red arrowhead. However, you can still click in the Timeline so the project Quick-Plays from there (or drag some other region in the Timeline so that region Quick-Plays), preserving the locked region.
    • You can also extend or contract Quick-Play with respect to the locked region without having to drag the entire region you want to Quick-Play. To do this, drag in either direction from the left-pointing red arrowhead of the locked region then release to play from the release point to the end of the locked region. Drag in either direction from the right-pointing red arrowhead then release to play from the start of the locked region to the release point.
    • To unlock the region so that all further playback respects the editing cursor or region in the waveform, choose Transport > Play Region > Unlock, or right-click in the Timeline and choose Unlock Play Region from the context menu.
    • Play Region Lock or Unlock may be performed even when the track is playing or paused from playing.

The Timeline in use

Standard playback shows:
  • The editing cursor (the black vertical bar)
  • The playback start position cursor (the left-pointing gray triangle with short gray vertical bar to left)
    • When Quick-Play is not active (see below) the editing cursor and the playback start position cursor are always at the same point on the Timeline, and together are called the standard cursor
Recording with no selection present shows:
  • The editing cursor and the playback start position cursor (as above)
  • The recording cursor (the red triangle) - recording will continue until stopped.
After clicking in the Timeline to initiate Quick-Play:
  • The editing cursor position is unchanged
  • The playback start position cursor moves to the point clicked
  • The green playback cursor shows the current playback position.
After clicking and dragging in the Timeline to initiate Quick-Play of a region:
  • The editing cursor position is unchanged
  • The green playback cursor shows the current playback position
  • The "Quick-Play" region is indicated by the thick horizontal gray bar with arrowheads on each end.
After clicking and dragging in the waveform:
  • Instead of the editing cursor, a shaded region shows the time range of the selected audio.
  • No audio plays, but the potential playback region is indicated by the thin horizontal gray bar with arrowheads on each end.
  • The potential playback region is identical to the selection region in the waveform.
After locking a Play Region
  • The thick horizontal red bar with arrowheads on each end show the region that will always be played, even if the editing cursor or region in the waveform is at a different position.
For other methods of navigating to playback points or areas, see Playing and Recording.

Pinned Play/Record Head

You can change Audacity to play and record with a fixed head pinned to a position in the Timeline. In this mode the head remains static and the waveforms will move as the audio is played or recorded.

This behavior is controlled by using the button at the left of the Timeline. By default this shows as a green downwards-pointing triangle (like the play head). In this mode, the play head or record head will move horizontally and the waveform will scroll when necessary, except that if Auto-scroll if head unpinned is unchecked in Tracks Preferences then scrolling will not occur.

Unpinned head button.png

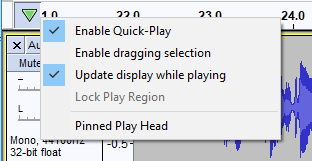

Clicking on the green triangle will cause a context menu to be popped up.

Head button context menu.png

From that context menu you can check on Pinned Play Head. This will cause the button icon to change to a drawing-pin which indicates that the play head or record head is now pinned to the center of the Timeline and when playing or recording takes place the waveform will move continuously under the fixed head.

Pinned head button.png

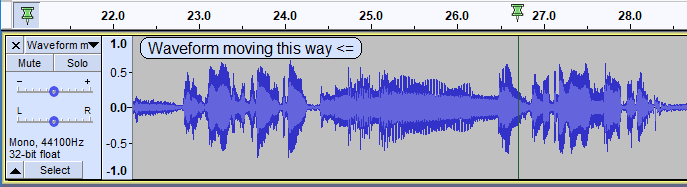

When pinned playback or recording is chosen, the play head displays as a static green drawing-pin and the waveform(s) will move as the audio is played (as shown in the image below). The recording head displays as a red drawing-pin.

Pinned head playback annotated trackname.png

You can revert back to unpinned playback and recording by clicking on the drawing pin and unchecking Pinned Play Head. The button will change back to the green triangle.

Unpinned or pinned head can also be selected in Transport > Transport Options.

For Scrubbing and Seeking, Audacity will ignore the setting you make for fixed head playback unless you turn "off" the option for "Always scrub unpinned" in Playback preferences.
Bulb icon The default pinned position is the center of the Timeline, but you can change this by clicking on the pinned head and dragging it along the Timeline while you are playing or recording. A double-click on the head will restore it to its default position in the center of the Timeline. You may find that centered is the most useful when using playback but for recording, repositioning the head to the right may be useful.

Using Timeline Quick-Play

Timeline Quick-Play provides a quick and convenient means to either start playback from any point within the current project or to playback a region of audio.

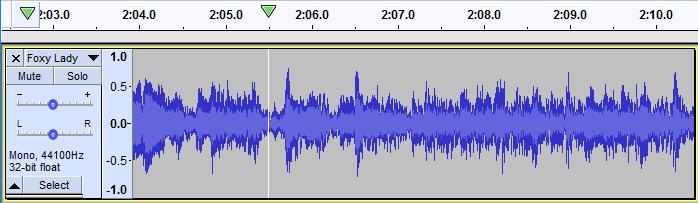

As you hover the mouse pointer over the Timeline a small green triangle appears in the Timeline indicating that Quick-Play is enabled, and a white vertical line is drawn through the waveform(s) below to aid finding a precise Quick-Play location. Note that if Snap-To is enabled in the Selection Toolbar then the vertical line will be yellow and Quick-Play will honor the snapping.

Timeline Quick-Play will work with the pinned playhead but clicking in the Timeline to indicate a new start point will cause that position to jump to the centered pinned head so you may find it better working with the unpinned playhead for Quick-Play.

Timeline Quickplay white line.png

This functionality can be toggled on/off by right clicking in the Timeline and enabling/disabling Quick-Play (default setting is "on").

Warning icon Timeline Quick-Play is disabled during recording for safety reasons so that recording is not inadvertently interrupted.

Clicking on the Timeline

  • Left-Click: Play from the time position of the mouse pointer when clicked.
  • Shift + Left-Click
    • within a selected region: Loop play the selected region, starting from the position of the mouse pointer.
    • not in a selected region: Loop play the project, starting from the position of the mouse pointer.
  • Right-Click: Opens the Timeline Right-Click menu.

Click and drag

  • Left-Click and drag: Creates a temporary play region. Playback begins when the left mouse button is released.
  • Shift + Left-Click and drag: Creates a temporary play region. Playback begins when the left mouse button is released. Playback of the temporary play region repeats (loops) until the play region is changed or playback is stopped (for example by pressing Space).
  • Ctrl + Left-Click and drag: This is similar to waveform Play Cut Preview. A temporary "Quick-Play region" is created, though in this case playback starts a few seconds before the start of the region, then skips over the "Quick-Play region" and plays a few seconds after that region. The duration of playback before / after the "Quick-Play region" is set in Edit > Preferences > Playback Cut Previewsection.

Adjusting the Quick-Play region

While Timeline Quick-Play is playing, the Quick-Play region may be adjusted by clicking and dragging one or other end of the Quick-Play region. Playback then restarts from the original or new start of the Quick-Play region. If the Shift key is held down while adjusting the Quick-Play region, loop playback will restart from the original or new start of the Quick-Play region.

The selection

By default, the audio selection or cursor position in the waveform is not affected by dragging the Quick-Play region.

This default behavior may be changed by choosing Enable dragging selection in the Timeline right-click menu. When dragging the selection is enabled, the Quick-Play region will create or adjust the waveform selection. The selection persists after Quick-Play has stopped. To revert to the default behavior, select Disable dragging selection in the Timeline right-click menu.

Note that dragging the selection cannot be enabled if the play region is locked (see below).

Locked Play Region

Audacity allows the Play Region or Quick-Play Region to be locked. While a region is locked, Timeline Quick-Play will temporarily over-ride the lock, replacing the red locked Play Region with the standard gray Quick-Play region, so allowing Quick-Play to be used. Immediately the left mouse button is released, the red locked Play Region is restored. A locked play region cannot be adjusted.

Timeline right-click context menu

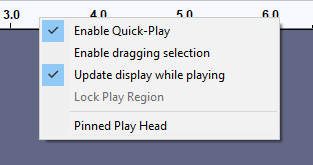

Right-click on the Timeline gives access to options that are convenient when using Timeline Quick-Play, via a short context menu.

Timeline right click menu 2-4-0.png

Enable Quick-Play: Turns the Timeline Quick-Play functionality on or off. The default setting is "on".

Enable dragging selection: When disabled (default), left-click and dragging the Play Region adjusts the Play Region only, leaving the current selection or editing cursor unaffected. When enabled, left-click and dragging the Play Region adjusts both the Play Region and the waveform selection together. This is particularly useful when finding the right place for a seamless loop.

Update display while playing: By default the waveform scrolls when playing. Disabling this option so as not to scroll can be useful when using Quick-Play to adjust the start and end of loops. Not scrolling ensures that the edges of the looped selection do not move if zooming in moves the playback point outside the visible area. The alternative method of disabling scrolling is to use Tracks Preferences and remove the checkmark from Auto-scroll if head unpinned.

Lock Play Region: The current position of the Play Region or Quick-Play region can be locked in the Timeline for use in all further standard playback, while still allowing Quick-Play of other regions or from other points.

Pinned Play Head: You can change Audacity to play and record with a fixed head pinned to a position in the Timeline. In this mode the head remains static and the waveforms will move as the audio is played or recorded. The default setting is "off"
