View Menu has commands that determine the amount of detail you see in all the tracks in the project window. It also lets you show or hide Toolbars and some additional windows such as Undo History.
View Menu has commands that determine the amount of detail you see in all the tracks in the project window. It also lets you show or hide Toolbars and some additional windows such as Undo HistoryTransport Menu commands let you play or stop, loop play, scrub play or record (including timed and sound activated recordings)Tracks Menu provides commands for creating and removing tracks, applying operations to selected tracks such as mixing, resampling or converting from stereo to mono, and lets you add or edit labelsGenerate Menu lets you create audio containing tones, noise or silenceAudacity includes many built-in effects and also lets you use a wide range of plug-in effectsThe Analyze Menu contains tools for finding out about the characteristics of your audio, or labeling key featureThe Tools Menu contains customisable toolsThe Extra menu provides access to additional Commands that are not available in the normal default Audacity menusThe Help Menu lets you find out more about the Audacity application and how to use it.  It also includes some diagnostic tools.Zoom in/out on the horizontal axisControls the sizes of tracksMove forward/backwards through the audioBrings up the History window which can then be left open while using Audacity normallyBrings up the Karaoke window, which displays the labels in a "bouncing ball" scrolling displayMixer Board is an alternative view to the audio tracks in the main tracks windowToolbars can be used to determine which of the Audacity toolbars are displayedShows extra menus with many extra less-used commandsOption to show or not show audio that is too loud (in red) on the wave formThe MenusViewMenu.png
Click for details
Click on the image to learn more






Audio tracks support different View Modes such as Waveform (the default), Waveform dB or Spectrogram.


Zoom

The Zoom submenu has commands that enable you to control the amount of audio, longer or shorter periods of time, that is visible on your screen.

Track Size

The Track Size submenu contains commands that help you to fit your project to the screen horizontally and vertically.

Skip To

The Skip to submenu has commands that enable you to readily skip the cursor position to the beginning or end of your current selection.

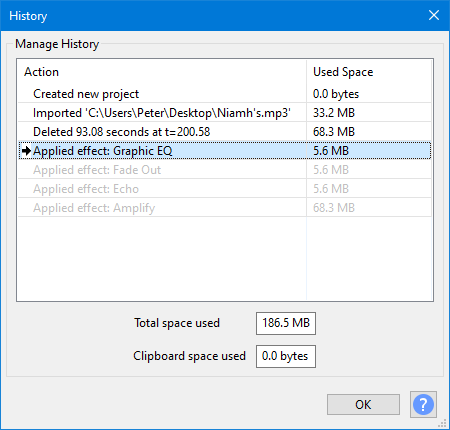

History...

Brings up the History window which can then be left open while using Audacity normally.

  • History lists all undoable actions performed in the current project, including importing.
  • The right-hand column shows the amount of hard disk space each operation used.
  • The total space used is shown in the first (uneditable) box beneath the list.
History dialog rollback 3-0-0.png

Select an item in the History list, and click the OK button, to Undo or Redo immediately to that action.

It is the same as choosing Edit > Undo or Edit > Redo multiple times, but much quicker.

See History - Undo and Redo for details on using the Undo History window.

Karaoke...

Karaoke... shows a bouncing ball that follows text as audio plays. The Karaoke... command is enabled whenever you have at least one label track. If you have multiple label tracks, it uses only the first one.

For more details see the Karaoke page.

Mixer Board...

Mixer Board... is an alternative view to the audio tracks in the main tracks window, and is analogous to a hardware mixer board. Each audio track is displayed in a Track Strip. Each Track Strip has its own pair of meters, gain slider, pan slider, and mute/solo buttons, echoing that track's controls in its Track Control Panel. The Mixer Board... command is enabled whenever there's an audio track - it can even be brought up during playback.

For more details see the Mixer Board page.

Extra Menus (on/off)

Shows the Extra menu with many extra less frequently used commands. This menu appears just before the help menu.


Show Clipping

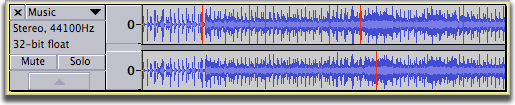

Click this menu item to turn display of clipped samples on and off - a check mark in the item indicates that display is turned on. If turned on (the default is off), individual or multiple clipped samples display as a red vertical line when in one of the waveform views. A sample is displayed as clipped if it touches or exceeds 0 dB and so touches or exceeds the volume envelope defined by +1.0 to - 1.0 on the vertical scale to left of the waveform.

A run of four or more consecutive clipped samples will also trigger the red clipping indicator in Meter Toolbar. A solid block of red in the waveform will almost certainly indicate multiple or extended runs of lost audio information above 0 dB, resulting in severe distortion. Avoid clipped samples where possible, for example by setting the recording level correctly. You may turn "Show Clipping" off if it behaves sluggishly on slower machines.

Bulb icon By choosing Analyze > Find Clipping..., clipping can also be shown diagrammatically in a Label Track so that screen-readers can access the information.


Enter / Exit Full Screen (Mac only)

Enter Full Screen enters full screen state, occupying the entire display and hiding the Audacity menu bar and window buttons and the Dock. This is the same as clicking the green window button top left of the Audacity title bar. To leave Full Screen, hover your mouse at the top of the monitor to show the menu bar and window buttons then access View > Exit Full Screen or click the green window button.

The Mac keyboard shortcut Ctrl + ⌘ + F to toggle full screen does not work in Audacity and so does not appear alongside the Enter / Exit Full Screen menu items. Separate "App Shortcuts" for "Enter Full Screen" and "Exit Full Screen" can be added for Audacity in the Mac Keyboard Preferences, but it is probably easier to use Audacity's own shortcut COMMAND + /   for "Full screen on/off" which performs the same full screen function.

Warning icon "Full screen on/off" is not interchangeable with the menu item or full screen button. Thus the Audacity shortcut cannot exit full screen entered by other methods, and the other methods cannot exit full screen entered by using the Audacity shortcut.
