Find Clipping

From Audacity Development Manual
Jump to: navigation, search


This displays runs of clipped samples in a Label Track, as a screen-reader accessible alternative to View > Show Clipping. A run must include at least one clipped sample, but may include unclipped samples too.
Accessed by: Analyze > Find Clipping...

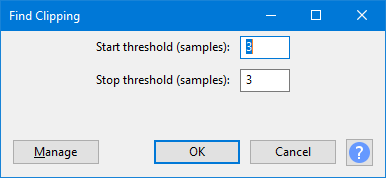

Find Clipping.png

Start Threshold

This is the number of contiguous clipped samples (default 3 samples) that must be present before they will be labeled as an individual run. The higher the threshold, the less likely a clipped region will be recognized and the fewer labels that will be generated.

Stop Threshold

This is the number of contiguous unclipped samples (default 3 samples) that must be present before the run of clipped samples will be terminated. The higher the threshold, the longer a clipped region will be and the fewer labels that will be generated.

Each individual run of clipped samples is marked in the format "number of number". For example, "11 of 11" means there are 11 samples in this run of clipped samples and all of them are clipped, while "9 of 11" means only nine samples in the run of 11 are clipped. In the case of a stereo track each channel will have its own label; if at one point both channels are clipped two labels will appear one above the other.

Unlike View > Show Clipping and Meter Toolbars "Find Clipping" is not automatically updated. After any editing that affects volume, or after import or recording of a new track, Find Clipping must be run again. Labels from another run of Find Clipping will be added to the existing label track - close the label track using the [X] on the left of the track if you want to view only labels for current clipping.

Buttons

Clicking on the command buttons give the following results:

  • Manage gives a dropdown menu enabling you to manage presets for the tool and to see some detail about the tool. For details see Manage presets
  • OK applies the effect to the selected audio with the current effect settings and closes the dialog
  • Cancel aborts the effect and leaves the audio unchanged, closing the dialog
  • Help Button brings you to the appropriate page in the Manual, this page


Output

Find Clipping will create a label track called "Clipping" unless a label track called "Clipping" already exists, in which case Find Clipping places the labels into the first (topmost) label track called "Clipping". Note that this is case sensitive.

If you have an audio track called "Clipping" - then Find Clipping does not use that track.
